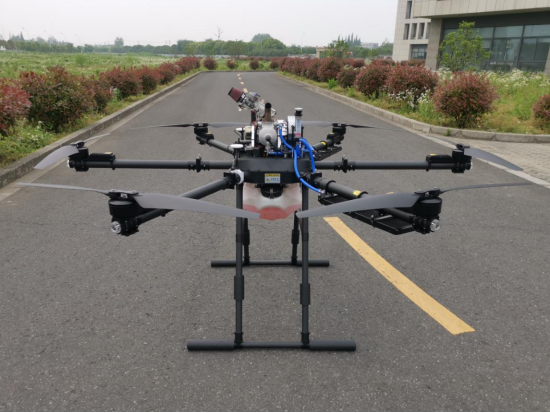

The hexarotor oil-to-electricity transfers kinetic energy to the generator through the engine, and the kinetic energy is converted into electrical energy through the generator, thereby providing power for the on-board power unit and the central control unit. This method reduces the control difficulty of the central control unit while improving The battery life of the drone..
Aircraft
Symmetrical motor wheelbase: 2220mm
Dimensions: 2220mm x 2220mm x 1300mm (arms unfolded)
1180mm x1180mm x 1300mm (arm folded)
Motor: KV value: 100rpm/V size: (100*45) mm
ESC: Continuous current: 180A (good heat dissipation conditions) Support lithium battery: 18S
Blade specifications: diameter * pitch: (42*12.3) inch single weight: 150g
Motor, ESC, propeller seat: 1970g
Body weight: 65kg (including avionics)
Standard fuel tank fully loaded: 16L (12kg)
Takeoff weight: 130kg
Load capacity: 50kg (16L oil)
Ascent speed: 8m/s
Lowering speed: 4 m/s
Maximum horizontal flight speed: positioning mode: 5m/s
Movement mode: 11m/s
Cruise mode: 10m/s
Attitude mode: 15m/s
Tilting angle: 25°
Rotatable angular velocity: pitch axis: 120°/s, pan axis: 120°/s
Flyable altitude: 3000m
Withstand wind speed: 10m/s
Flight time: 100 minutes (16L oil load 50kg)
Working environment temperature: -30℃ to +65℃
Hovering accuracy: vertical: ±0.5 m; horizontal: ±1.5 m (when GPS positioning is working normally)
Photoelectric pod
Dimensions: 180mmx270mm
Weight: 3000g
Power supply: DC18-26V
Communication interface: CAN, S-BUS, S232
Video interface: visible light HD-SDI digital video, infrared PAL system analog video
Roll: Azimuth: +60° to -60°
Heading and bearing: 360°*N
Pitch: -135°+45° (the horizontal direction is 0, the up is positive and the bottom is negative)
Stability accuracy: <0.3mrad
Working temperature: -20℃ to +60℃
Storage temperature: -30° to +60°
Protection level: IP65
Image Transmission System
Working frequency: 320-470/450-600/1150-1500MHz
Transmitting power: 33dBm(2w)
Maximum image transmission distance: 50-80KM (open and unobstructed, no electromagnetic interference)
Communication waveform: COFDM
Transmission rate: peak 15Mbps
Channel bandwidth: 1.25/1.5/1.75/2.5/3/3.5/5/6/7/8/10MHz
HD display remote control
Operating frequency: 5725MHz to 5850MHz, 2400MHz to 2483.5MHz
Maximum communication distance: 20KM (open and unobstructed, no electromagnetic interference)
Display device: 7-inch screen, resolution 1920x1200, brightness 2000cd/㎡, Android system, system memory 4G RAM+16G ROM
Weight: 1034g
Life time: 6-20h
Built-in battery: 4.2V 20000mAh
Support memory card type: Micro SD card with a maximum capacity of 64GB
Working environment temperature: -30℃ to 65℃
POWER
Two-cylinder, two-stroke gasoline water-cooled engine.
Weight: 20.7KG (including power generation plate accessories)
Size: 520*480*490mm
Displacement: 340CC
Maximum power generation: 18kW
Output voltage: DC75V
Power battery: 18S
Fuel consumption: 373g/kw.h (hovering 9 liters/hour)
Fuel: 93# or above unleaded gasoline + 2T fully synthetic lubricating oil (Modeway, Motul 710, etc.) Fuel ratio: 40:1 Ambient temperature: -30℃ to 65℃
Balance charger
Input voltage: 100-240V
Output power: 1260W (630W x 2)
Discharge power: 100W (50W x 2)
Charging current range: 1.0-12.0A x 2
Maximum balance current: 1.0-1.5A charge
Battery type: lithium battery (LiPo) / high voltage lithium battery (LiHV)
Number of Lithium Battery Cells: 12 Cells x 4
Charging mode: fast charging/precision charging/battery storage
Built-in battery
Voltage: 75V
Capacity: 6000mAh
Continuous discharge rate: 75C
Size (length * width * thickness): 255*220*60.5mm (thickness: maximum 60.5mm,
Minimum 51mm)
Weight: 2.61kg
