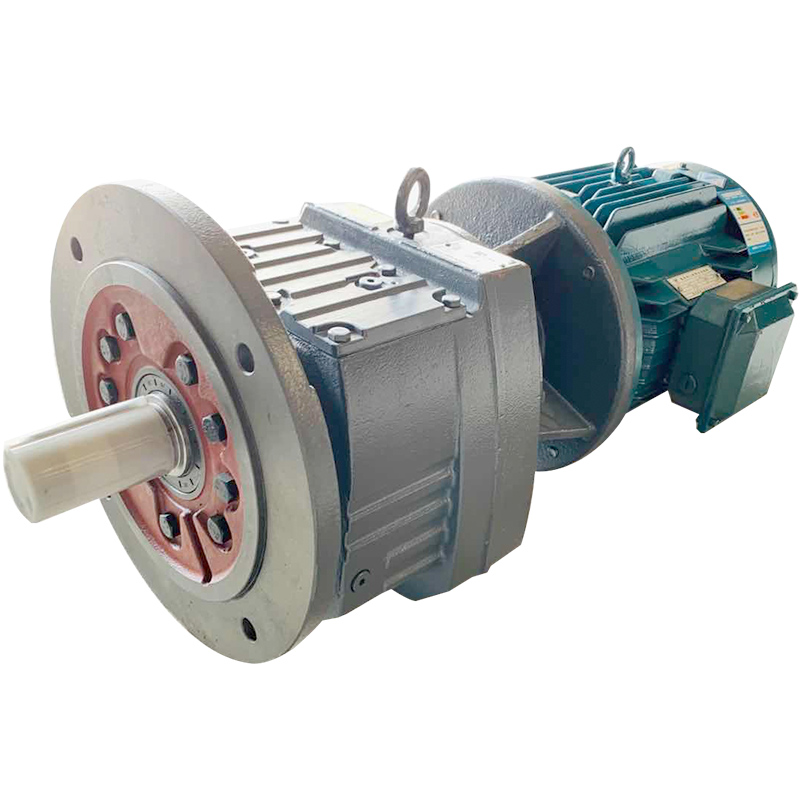

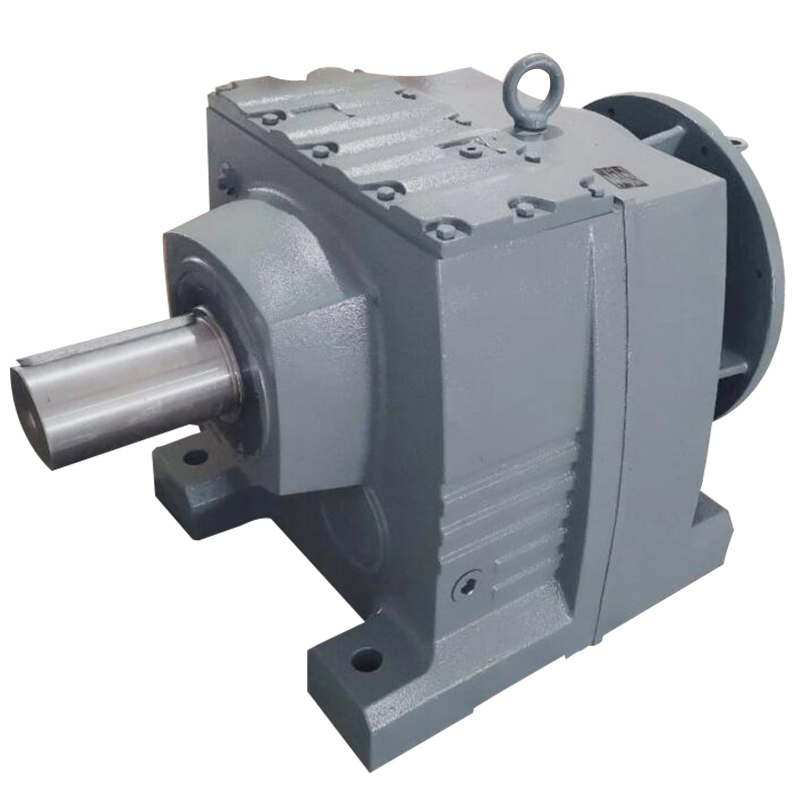

Helical Gearmotor R Series

R Series Inline Helical Gear Motors & Gearboxes, single-stage, two-stage and three-stage sizes, can be combined with other types of gearboxes

Quantity:
  • Speed

R series helical gear units: high efficiency and wide range of gear unit ratios


All Gear Made by precision CNC grinding machine, it have long service life and noiseless. Gear reducers are based on the building block design, so it's convenient for them to fit all types of motors or to connect with other power input. High transmission efficiency. A single stage can reach a transmission efficiency as much as 96%. Precise division of transmission ratio with a wide range, The combination of Reducers can produce a larger transmission ratio at a low output rotational speed and larger torque

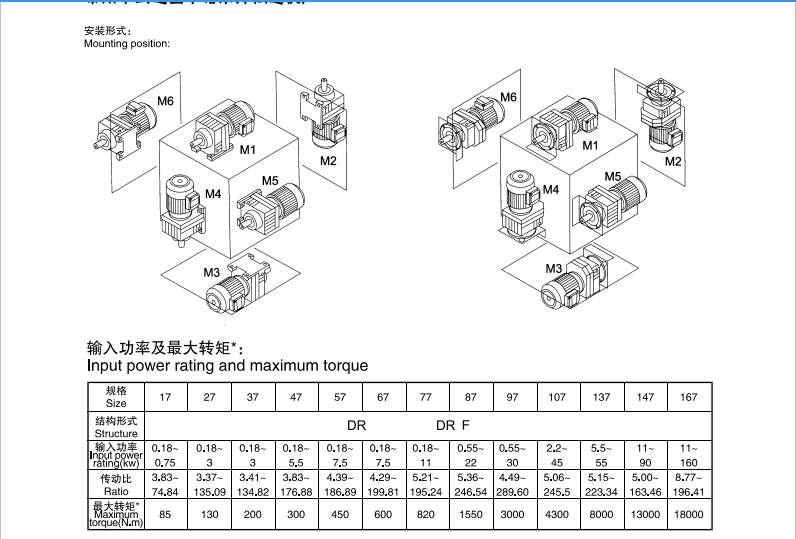

Installation method and parameter table

R series helical reducerR series helical reducer1

The Advantages


High torque density Long service life R37 ... R167 Reduced backlash option RM series, specially designed for agitating applications The tried and tested modular concept and our strict quality criteria allow to provide a diverse range of torques and reduction ratios with incomparably finely tuned gradings. ;

TYPE: R / RF / R..AD / RF..AD / SIZE: 17 / 27 / 37 / 47 / 57 / 67 / 77 / 87 / 97 / 107 / 137 / 147 / 167 RATIO: 1/5~1/18000 Single-stage or multi-stage Foot-mounted or flange-mounted Foot-mounted and flange-mounted Flange-mounted with extended bearing hub ;


Helical Gearmotor R Series


R series (two-stage and three-stage) Our complete range of helical gearmotors provides the optimum size and power solution for every drive task. And for applications where weight is an issue, our multi-stage gear units provide something special: Thanks to their die-cast aluminum design, the models R07, R17 and R27 are three particularly efficient lightweights – ideal as satellite drives and for use in light machine constructions. Reduced backlash helical gear units are also available for particularly precise requirements. ;


Helical Gearmotor R Series


R- series R-  gearmotors with extended output bearing hub are a special type of helical gearmotor. They were designed especially for agitating applications and allow for high overhung and axial loads and bending moments. The remaining data corresponds to that of standard helical gearmotors.
