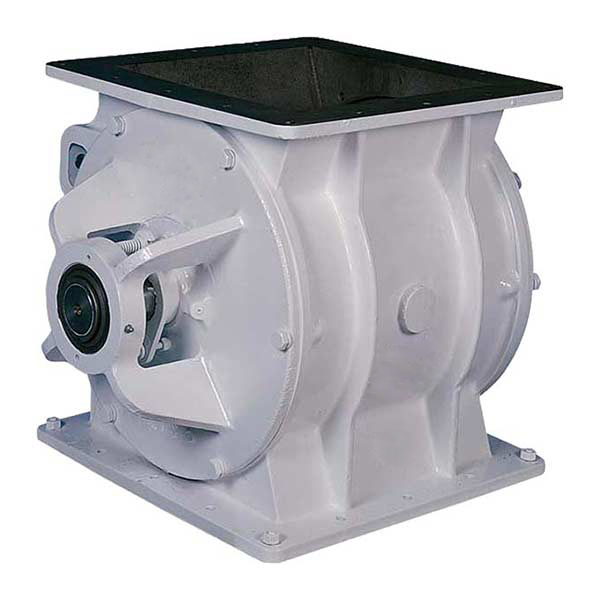

Our abrasion resistant rotary airlock is considered most durable rotary valve and is your solution to rotary airlock valves that constantly wear out in high abrasive applications.
Our special treatment processes allow our abrasion resistant rotary airlock valves to withstand even the most abrasive and corrosive products and applications. They achieve better performance with less maintenance than other rotary valves on the market.
" Speed" Abrasion Resistant Rotary Airlock Valve is the preferred choice for highly abrasive or corrosive products.
The rotary airlock's ceramic lined cast iron housing achieves better performance than airlocks made of solely of cast iron, stainless steel, or Ni-hard.
The thick-wear layers of alumina ceramic coating throughout the airlock maintains the rotary valve’s precision tolerances and provides long wear life.
Other features include an over-sized mounting flange, Heavy-duty outboard bearings, self-adjusting packing glands , and pre-drilled end plates for air purge.
There are many types and uses for the rotary air lock feeder in our plants. Rotary feeders are in pneumatic conveying systems, dust control equipment and also volumetric feeders to maintain an even flow of material through processing systems.
The basic use of the airlock feeder is an airlock transition point, sealing pressurized systems against loss of air or gas while maintaining a flow of material between components with different pressure. They are also used as a feeder for metering material at precise flow rates from bins or hoppers into conveying or processing systems.
Figure F1
Keeping in mind that there are different manufactures and brand names, we will point out the main components of a standard rotary airlock feeder, along with the different end plates, rotors and casings that can be used.
Interchangeable parts
End plates
1. Flange bearing and lip seals.
2. Packing gland, separate stuffing box and cartridge bearing.
3. Packing gland, integral stuffing box and cartridge bearing.
Rotors
4. Type I open end.
5. Type II closed end with adjustable tips.
6. Type I closed end.
Casing
7. Without inspection panel.
8. With inspection panel.
9. Side inlet.
the Ceramic Series Rotary Airlock ensures up to +/- 12 PSI pressure differential and up to 300°F.
Constructed from either cast iron or stainless steel, the Ceramic Series valve is fully equipped with eight-blade rotors with your choice of speed and square sizes of 6, 8, 10, 12, 14 and 16 inches.
Its heavy cast iron houses an over-sized mounting flange, heavy-duty outboard bearings, self-adjusting packing glands ;and pre-drilled end plates for superior air purge.
Additionally, ceramic options include ceramic-lined end plates, ceramic-lined rotors and tungsten carbide throat. Options include ceramic lined end plates, ceramic lined rotors, and tungsten carbide throat.
type | Volume/rotation | Installation dimension | |||||||||||
ΦA | ΦB | ΦC | A1 | B1 | C1 | E | Motor | Speed | temperature | L | n-Φ (mm) | ||
2type | 2L/T | 240 | 200 | 150 | 240x240 | 200 | 150x150 | 320 | BWD0-0.75-59 | 24 | 280 | 450 | 8-Φ11 |
4type | 4L/T | 280 | 240 | 180 | 270x270 | 230 | 180x180 | 350 | BWD0-0.75-59 | 24 | 280 | 480 | 8-Φ11 |
6type | 6L/T | 300 | 260 | 200 | 290x290 | 250 | 200x200 | 370 | BWD0-0.75-59 | 24 | 280 | 500 | 8-Φ11 |
8type | 8L/T | 320 | 280 | 220 | 310x310 | 270 | 220x220 | 380 | BWD0-0.75-59 | 24 | 280 | 520 | 8-Φ11 |
10type | 10L/T | 340 | 300 | 240 | 330x330 | 290 | 240x240 | 380 | BWD0-0.75-59 | 24 | 280 | 540 | 8-Φ11 |
12type | 12L/T | 360 | 320 | 260 | 350x350 | 310 | 260x260 | 440 | BWD1-0.75-59 | 24 | 280 | 560 | 8-Φ17 |
14type | 14L/T | 380 | 340 | 280 | 370x370 | 330 | 280x280 | 450 | BWD1-1.1-59 | 24 | 280 | 580 | 8-Φ17 |
16type | 16L/T | 400 | 360 | 300 | 400x400 | 350 | 300x300 | 460 | BWD1-1.5-59 | 24 | 280 | 600 | 8-Φ17 |
18type | 18L/R | 420 | 380 | 320 | 420x420 | 370 | 320x320 | 480 | BWD1-1.5-59 | 24 | 280 | 620 | 8-Φ17 |
20type | 20L/T | 440 | 400 | 340 | 440x440 | 390 | 340x340 | 500 | BWD1-1.5-59 | 24 | 280 | 640 | 8-Φ17 |
26type | 26L/T | 500 | 460 | 400 | 510x510 | 450 | 400x400 | 530 | BWD2-2.2-59 | 24 | 280 | 700 | 12-Φ17 |
30type | 30L/T | 560 | 500 | 440 | 550x550 | 495 | 440x440 | 550 | BWD2-3-59 | 24 | 280 | 760 | 12-Φ17 |
40type | 40L/T | 620 | 558 | 500 | 620x620 | 558 | 500x500 | 560 | BWD2-4-59 | 24 | 280 | 820 | 12-Φ17 |
50type | 50L/T | 650 | 600 | 540 | 650x650 | 600 | 540x540 | 580 | BWD4-4-59 | 24 | 280 | 850 | 12-Φ17 |
About Speed airlocks reduce maintenance costs and help avoid losses in production, all the while achieving higher efficiency by holding our tighter tolerances longer. When heavy-duty just is not enough, our will offer the proven solution to rotary airlocks that wear out in high-abrasive applications.
Q: Are you trading company or manufacturer ?
A: We are factory.23 years of production experience..
Q: How long is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.
Q: What is your terms of payment ?
A: Payment=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment. If you have another question, pls feel free to contact us
