Helical worm gear unit with torque capacities up to 10,000Nm, power up to 60kW and ratios up to 250:1 in two stage and up to 60,000:1 in combined form.

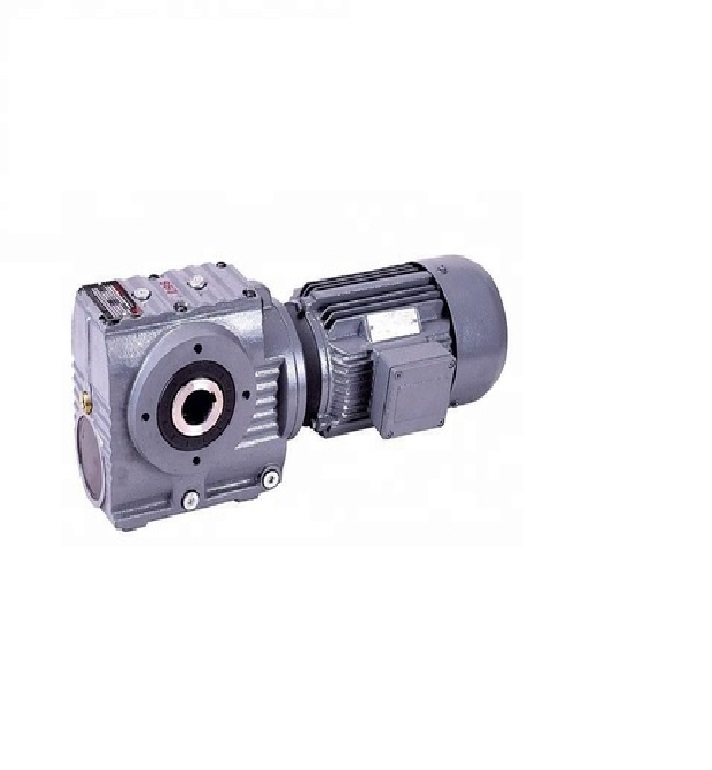

Helical-worm gear units: simple design, high efficiency The figure shows a gearmotor with a helical-worm gear unit The simple design makes for cost-effectiveness. The individual adjustment of torque and speed allows for space-saving installation of our helical-worm gear units. Can be supplied as double, triple, quadruple and quintuple reduction units; foot, flange or shaft mounted. Available as motorised, motor ready or as a reducer with a keyed input shaft.
Power up to 60kW covering the majority of drive requirements Ratios: up to 250:1 in two stage, up to 60,000:1 in combined form offers wide speed range Output torque up to 10,000Nm providing low cost per Nm Interchangeable Euro dimensions for ease of replacement Accepts standard motors ensuring fast and low cost replacement Oil tight gear head keeps motor replacement free from oil spills Cast iron case with epoxy-polyester powder-coated finish for strength and durability
