ZLYJ173 Gearbox Reducer

Quantity:

ZLYJ Series Extruder Gearbox for Mask machine



Mainly characterictics:

1.ZLYJ series speed reducer is a transmission part that possesses high precision hard gear surface and thrust block designed for plastic screw extruder.

2.The design of product adapts all kinds of norm specified in ZBJ19009-88/it features that gear and axis parts are made of high strength alloy steel.

3.The gear is processes by carburization, quenching and tooth grinding process.

4.The precision of gear is grade 6 specified in GB1009588.

5.The hardness of gear surface is HRC54~62. At front end of hollow input axis there is large specification thrust bearing that will bear axial thrust force while the screw is working.

6.The complete machine features compact, high in bearing capacity, stable in transmission, low noise, high efficiency, etc.

Brief introduction

-ZLYJ series reduction gearbox is a transmission part that possesses high precision hard gear surface and thrust block designed for plastic screw extruder.

-The design of product adapts all kinds of norm specified in ZBJ19009-88/it features that gear and axis parts are made of high strength alloy steel.

-The gear is processes by carburization, quenching and tooth grinding process.

-The precision of gear is grade 6 specified in GB1009588.

-The hardness of gear surface is HRC54~62. At front end of hollow input axis there is large specification thrust bearing that will bear axial thrust force while the screw is working.

-the complete machine features compact, high in bearing capacity, stable in transmission, low noise, high efficiency, etc.


Application:

This ZLYJ gearbox are mainly used in Plastic Extruding Machine, like EPS, PE....

Parameters:

Type

Model

RatioRange

AxialThrust

ScrewDiameter

NetWeight

(KN)

(mm)

(KG)

201704261607129421


ZLYJ112

8/10/12.5

41

35

95

ZLYJ 133

8/10/12.5/14/16/18/20

54

50

144

ZLYJ 146

8/10/12.5/14/16/18/20

60

55

205

ZLYJ 173

8/10/12.5/14/16/18/20

153

65

256

ZLYJ 200

8/10/12.5/14/16/18/20

187

75

500

ZLYJ 225

8/10/12.5/14/16/18/20

250

90

650

ZLYJ 250

8/10/12.5/14/16/18/20

268

100

815

ZLYJ 280

8/10/12.5/14/16/18/20

356

105,110

1020

ZLYJ 315

8/10/12.5/14/16/18/20

403

120

1410

ZLYJ 330

8/10/12.5/14/16/18/20

448

130,150

1520

ZLYJ 375

8/10/12.5/14/16/18/20

495

150,160

1800

ZLYJ 420

8/10/12.5/14/16/18/20

545

165

2750

ZLYJ 450

8/10/12.5/14/16/18/20

590

165

3560

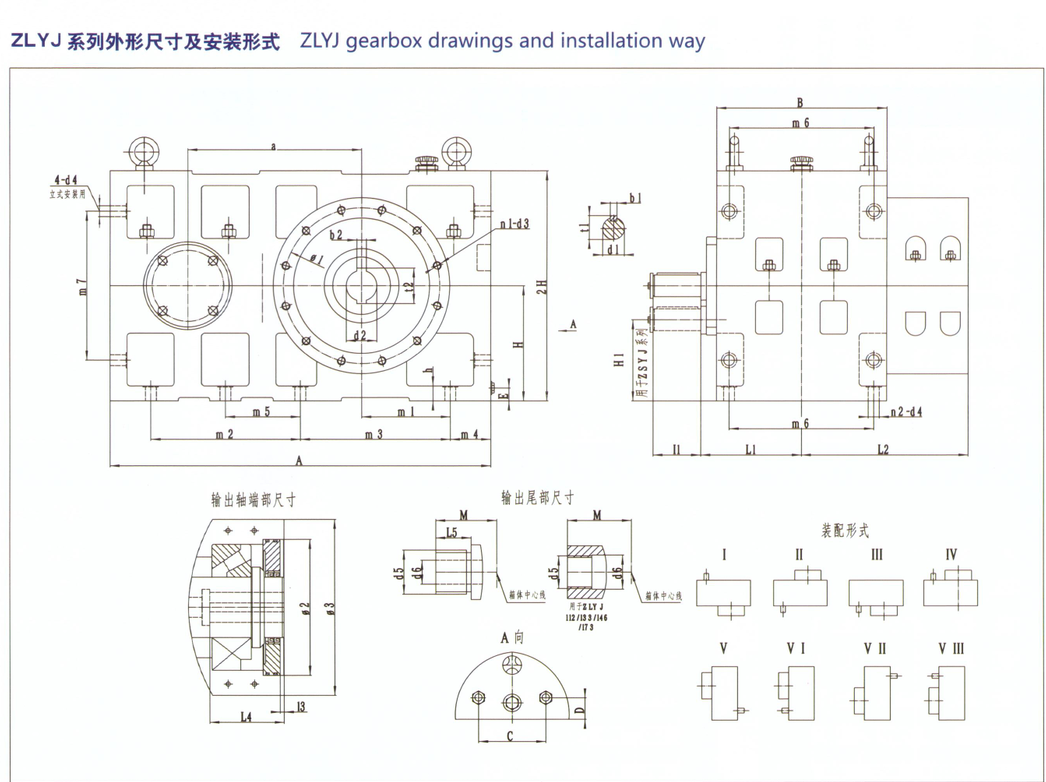

13

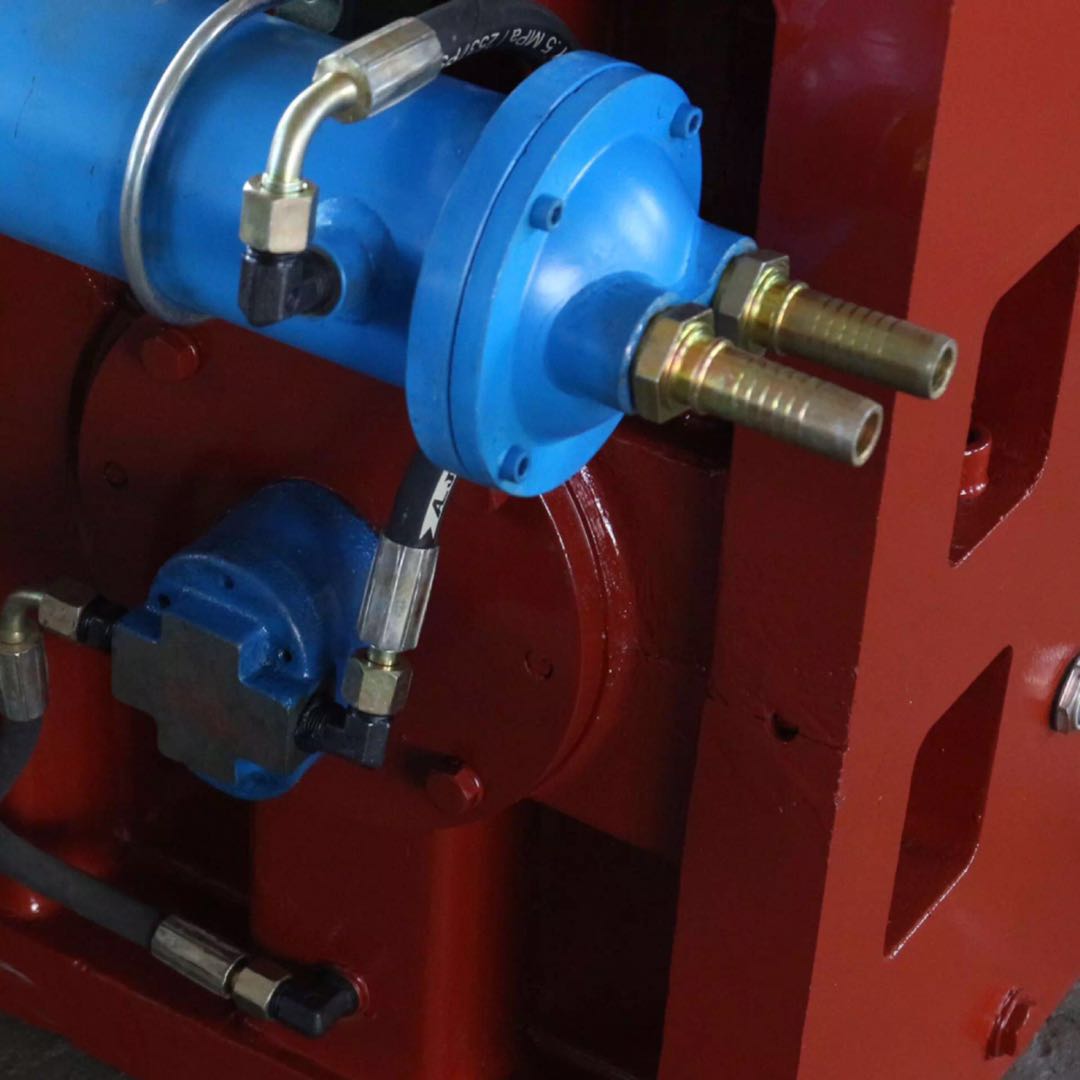

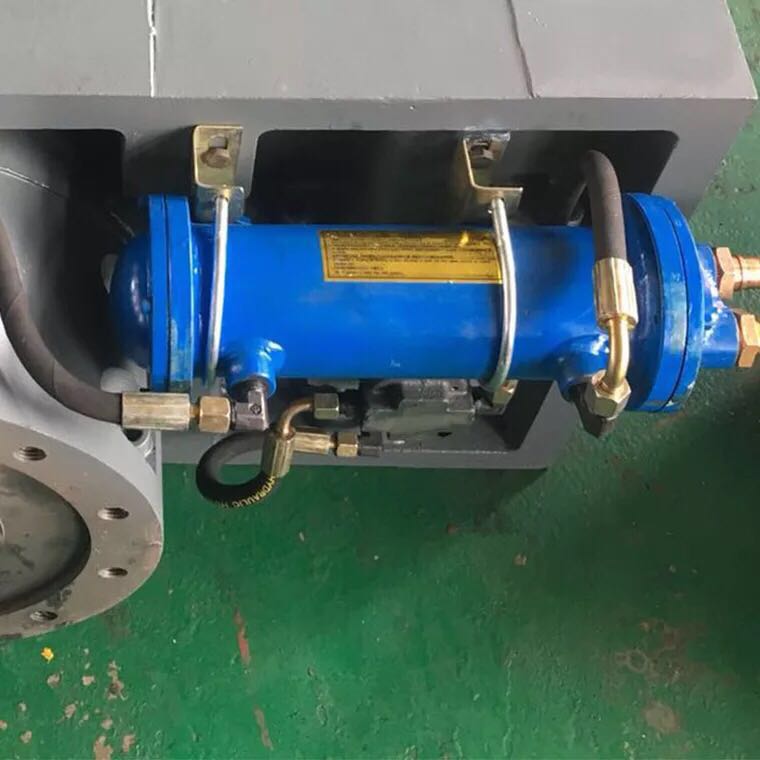

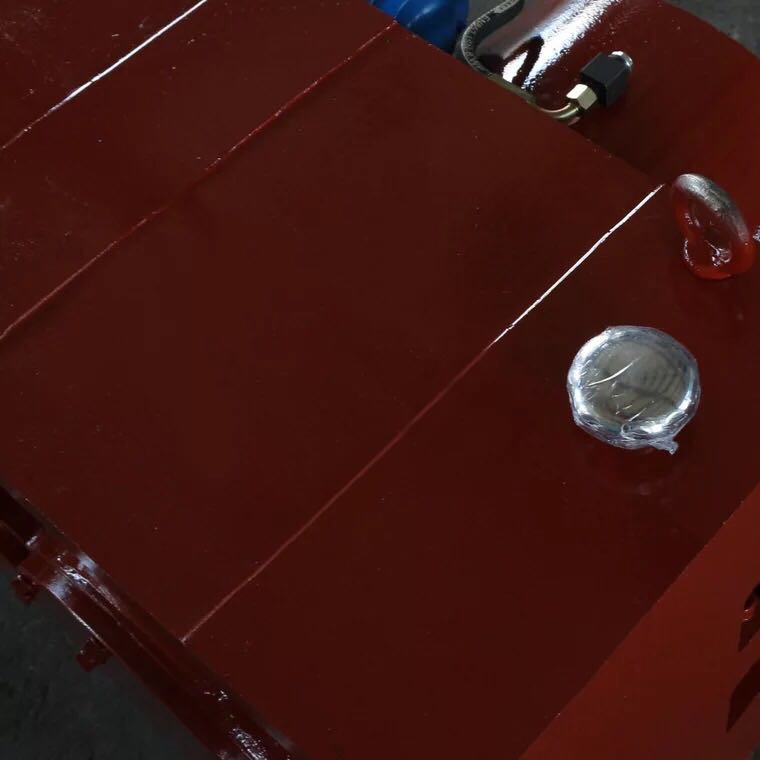

Detail image


2

67
