Carbon Steel Rotary Valve for Discharge And Dust Removal Equipment

The Dust Collector Series rotary airlock valve is a budget-friendly, economical choice for general use under dust collectors, cyclones and hoppers. The standard features on our Dust Collector Series rotary airlocks are typically found only on heavy-duty airlocks
Availability:
Quantity:
  • Speed

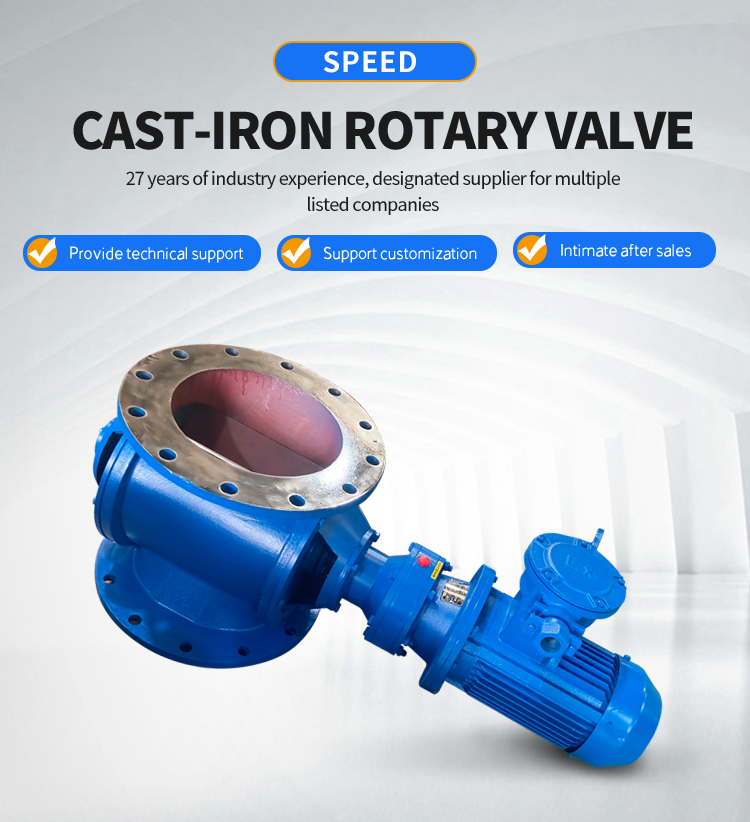

铸铁直联详情页_01

The structure of the rotary discharge valve:

The rotary valve is composed of a motor, a gear reducer (Y) or a cycloid reducer (X), a turbine reducer, and a valve body. The inlet and outlet flanges are square, round, rectangular, etc.

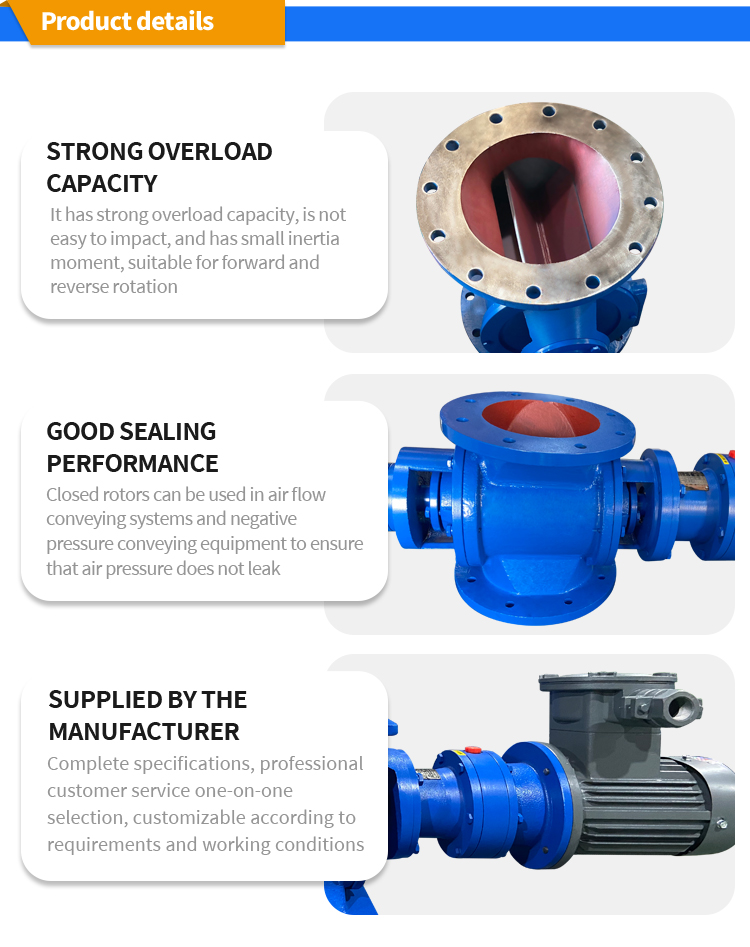

铸铁直联详情页_06


Features of star unloader:


1. By adopting the principle of planetary rotation, the input and output are on the same axis and have the uniqueness of being directly connected to the motor. Therefore, the structure is compact, beautiful, novel, small in size and light in weight.


2. Reliable and stable operation, low noise, few faults, long life, and the gearing parts are made of ductile iron and bearing steel. Good performance and high reliability.


3. Bearings and gearboxes are kept away from the valve body to avoid the influence of high-temperature dust. The front and rear end covers have good sealing performance to prevent dust from leaking and extend the service life of moving parts and lubrication systems.


4. The rotary valve has strong overload capacity, small impact resistance and inertia moment, and is suitable for frequent starts and reverse and forward rotation.


5. The gap between the valve body and the impeller rotor is small, the air tightness is high, and the air locking effect is good to avoid air leakage and material leakage.

Dust Collector Rotary Airlock Valve Features And Benefits

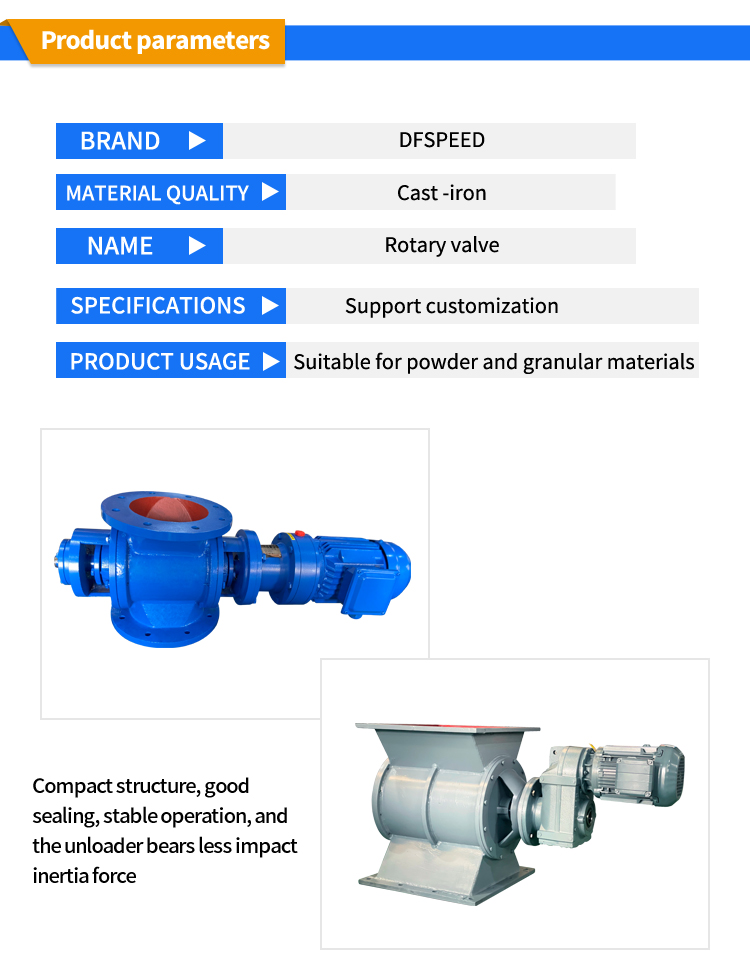

铸铁直联详情页_03

Cast iron construction

Heavy cast housing & end plates for maximum rigidity

Maintenance-free inboard bearings

Direct drive gear-motors (24 RPM)

blade rotors:6-12


Parameters Table

rotary valve drawing

 type

Volume/rotation



Power



Speed

temperature

weight

Installation dimension

(KW)

R/min

(°C)

Kg

ΦA

ΦB

ΦC

A1

B1

C1

H

E

n-Φ (mm)

2type

2L/T

0.75

24

280

75

240

200

150

240x240

200

150x150

240

850

8-Φ11

4type

4L/T

0.75

24

280

105

280

240

180

270x270

230

180x180

280

900

8-Φ11

6type

6L/T

0.75

24

280

110

300

260

200

290x290

250

200x200

300

930

8-Φ11

8type

8L/T

0.75

24

280

125

320

280

220

310x310

270

220x220

320

950

8-Φ11

10type

10L/T

1.1

24

280

135

340

300

240

330x330

290

240x240

340

1000

8-Φ13

12type

12L/T

1.1

24

280

140

360

320

260

350x350

310

260x260

360

1030

8-Φ17

14type

14L/T

1.1

24

280

160

380

340

280

370x370

330

280x280

380

1050

8-Φ17

16type

16L/T

1.1

24

280

180

400

360

300

400x400

350

300x300

400

1080

8-Φ17

18type

18L/R

1.5

24

280

195

420

380

320

420x420

370

320x320

420

1100

8-Φ17

20type

20L/T

1.5

24

280

210

440

400

340

440x440

390

340x340

440

1150

8-Φ17

26type

26L/T

2.2

24

280

310

500

460

400

510x510

450

400x400

560

1300

12-Φ17

30type

30L/T

3

24

280

350

560

500

440

550x550

495

440x440

550

1350

12-Φ17

40type

40L/T

3

24

280

450

620

558

500

620x620

558

500x500

620

1500

12-Φ17

50type

50L/T

3

24

280

500

650

600

540

650x650

600

540x540

650

1600

12-Φ17

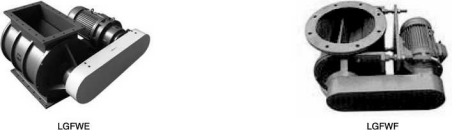

Chain type rotary valve parameter table

1679129879781


1679129826675

 Type

Volume/rotation

 Installation dimension

ΦA

ΦB

ΦC

A1

B1

C1

E

Motor

Speed

Temperature

L

n-Φ (mm)

2type

2L/T

240

200

150

240x240

200

150x150

320

BWD0-0.75-59

24

280

450

8-Φ11

4type

4L/T

280

240

180

270x270

230

180x180

350

BWD0-0.75-59

24

280

480

8-Φ11

6type

6L/T

300

260

200

290x290

250

200x200

370

BWD0-0.75-59

24

280

500

8-Φ11

8type

8L/T

320

280

220

310x310

270

220x220

380

BWD0-0.75-59

24

280

520

8-Φ11

10type

10L/T

340

300

240

330x330

290

240x240

380

BWD0-0.75-59

24

280

540

8-Φ11

12type

12L/T

360

320

260

350x350

310

260x260

440

BWD1-0.75-59

24

280

560

8-Φ17

14type

14L/T

380

340

280

370x370

330

280x280

450

BWD1-1.1-59

24

280

580

8-Φ17

16type

16L/T

400

360

300

400x400

350

300x300

460

BWD1-1.5-59

24

280

600

8-Φ17

18type

18L/R

420

380

320

420x420

370

320x320

480

BWD1-1.5-59

24

280

620

8-Φ17

20type

20L/T

440

400

340

440x440

390

340x340

500

BWD1-1.5-59

24

280

640

8-Φ17

26type

26L/T

500

460

400

510x510

450

400x400

530

BWD2-2.2-59

24

280

700

12-Φ17

30type

30L/T

560

500

440

550x550

495

440x440

550

BWD2-3-59

24

280

760

12-Φ17

40type

40L/T

620

558

500

620x620

558

500x500

560

BWD2-4-59

24

280

820

12-Φ17

50type

50L/T

650

600

540

650x650

600

540x540

580

BWD4-4-59

24

280

850

12-Φ17


Configuration Available for Quick Shipment


Low height – easy retrofit into competitive airlock spaces

Temperatures up to 716°F

pressure:0.2Mpa

Custom drilled flanges for customer’s pattern at no charge

Dust Collector Rotary Airlock Valve Options

Beveled Rotor Tips – Increases operating efficiency by minimizing drag and horsepower.

Motion Switch – A non-contact sensor that indicates loss of speed or zero speed, preventing damage to system components

Motor – For use in hazardous environments.

Flexible Rotor Tips – For handling stringy or fibrous products that cause conventional rotors to jamb
