Fixed Wing UAV | Fixed Wing Drone Manufacturers

Vertical take-off and landing fixed-wing UAV drone with hd camera and gps

• Auto flight route planning, auto elevation check, auto VTOL takeoff & landing, auto data collection.

• Safety Return-to-home when low battery and failsafe.

• Terrain following flight planning.

• Terrain following flight planning.

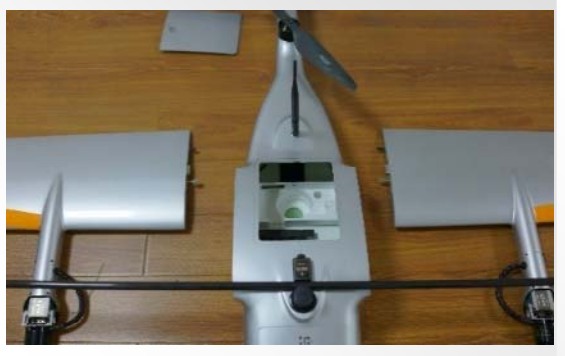

Quick-assemble

     Full quick-assembly design, can be assembed or dismantaled within 5 min.

Can-Bus system

     Complete No-wire inside, clean & neat, convenient to replace battery &payloads

Replaceable payloads

     Easily replace single camera for ortho photogrammetry and 5-lens camera for oblique photogrammetry

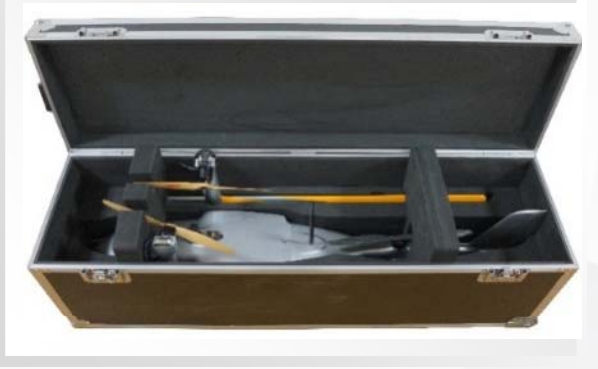

Solid and safe package

     Packed in Aerial-grade aluminum case , and soft material bushing to Provide 100% protection.

 Wingspan: 3800 meters.

Cruise Speed: 90-120 km/h

Max. Takeoff Weight: 20.0 kg

Payload: 2.0-5.0 kg

Flight Endurance: 2-3 hours

Payload equipment (optional):

Oblique aerial cameras (5 sensors)

Total pixels: 120 mega pixels ( 24.3 mega x5)

Focus: APS 35mm*4 + 25mm*1

Total weight: 750 g

Single lens camera(Sony RX1RM2):

 Total pixels: 42.2 mega pixels

 Focus: Full screen Carl Zeiss 35mm lens

Total weight: 520 g

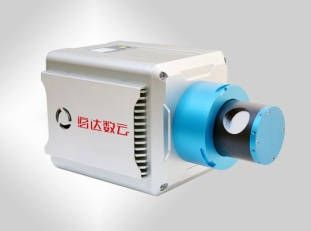

LiDAR system

   (Please consult the supplier for detailed specification)
