| Quantity: | |
|---|---|
★Composite material is formed in one piece, and the surface is painted with strong corrosion resistance. The body is light, the body is strong and rigid, and the body can be folded;
★Industrial-grade hybrid wing control system: three IMU, three-mode GPS, dual magnetic compass, the latest AxFusion sensor fusion algorithm and calibration technology,
★Military-grade performance radio designed for use in severe interference environments, suitable for working in various extremely harsh environments, with long transmission distance.
Hanging fixed wing | adopting four plus one mechanism design, large load, strong expansion; |
Body size | 3378mm*1500mm*500mm; |
Effective load | ≤6kg; |
Battery life | 201 minutes; |
Flight altitude | ≤4500m |
Flyable speed | ≤100KM/H; maximum climb speed: 4m/s, maximum descent speed: 5m/s; |
Control radius | 30 kilometers; |
Resistance to environmental wind | Level 6 |
Flight control system | The latest AxFusion sensor fusion algorithm and calibration technology, combined with 4 redundancy corrected IMU, dual redundancy magnetic compass, dual redundancy airspeed meter, dual redundancy barometer, dual redundancy satellite receiver, to obtain high-precision pose Data, and through manual intervention of automatic margin management technology, improve the reliability of the motion information feedback of the entire UAV. The attitude measurement accuracy can reach 0.05 degrees statically and 0.1 degrees dynamically. |
Image module | Image transmission distance: 15-30 kilometers, real-time video recording at the ground receiving end; Video stream: 8Mbps～12Mbps; audio and video input: digital HDMI, 3G HD-SDI; Image resolution 1920*1080P @ 60/50/30/25, compatible with 720P@ 60/50; The transmitter can support 900 sets of receivers to receive images or videos; |
Radio module | Transmission distance: 15-30 kilometers; can provide a maximum transmission rate of 153.6kbps; Anti-interference performance: 64000 frequency hopping mode is automatically selected, CRC/ARQ; Working mode: point-to-point, base station, sub-station, relay station, self-healing network; Compatibility: Support MDSinSite network management to be compatible with other MDS products; |
Power battery: | Battery capacity 25000mAh, 26.2V, 30C discharge; |
★Battery life: 2-3 hours of continuous work (equipped with dual batteries and car chargers can work around the clock; .
★Storage expansion: freely expand by inserting a large-capacity SD card or USB.
(1) Image transmission: 1.2G/2.4G/5.8G;
(2) Video storage: CVBS analog signal, HDMI high-definition video capture and storage, support SD card, U disk, mobile disk.
(3) Ground station joystick: high-precision remote stick sensor, control throttle and direction push stick (flight control), high-precision pulley control pan/tilt zoom and pitch; pan/tilt control key, can control different equipment loads;
(4) Keyboard: full touch screen virtual keyboard;
(5) Plug and unplug battery interface, a single battery can work for 4-5 hours;
(6) Network: Support WIFI connection or external 4G module via USB;
(7) Mission planning function: With mission planning function, it supports real-time modification of waypoints during flight through the ground station. That is: the drone can autonomously return to the real-time location of the ground station; it has one-key take-off and one-key return control keys;

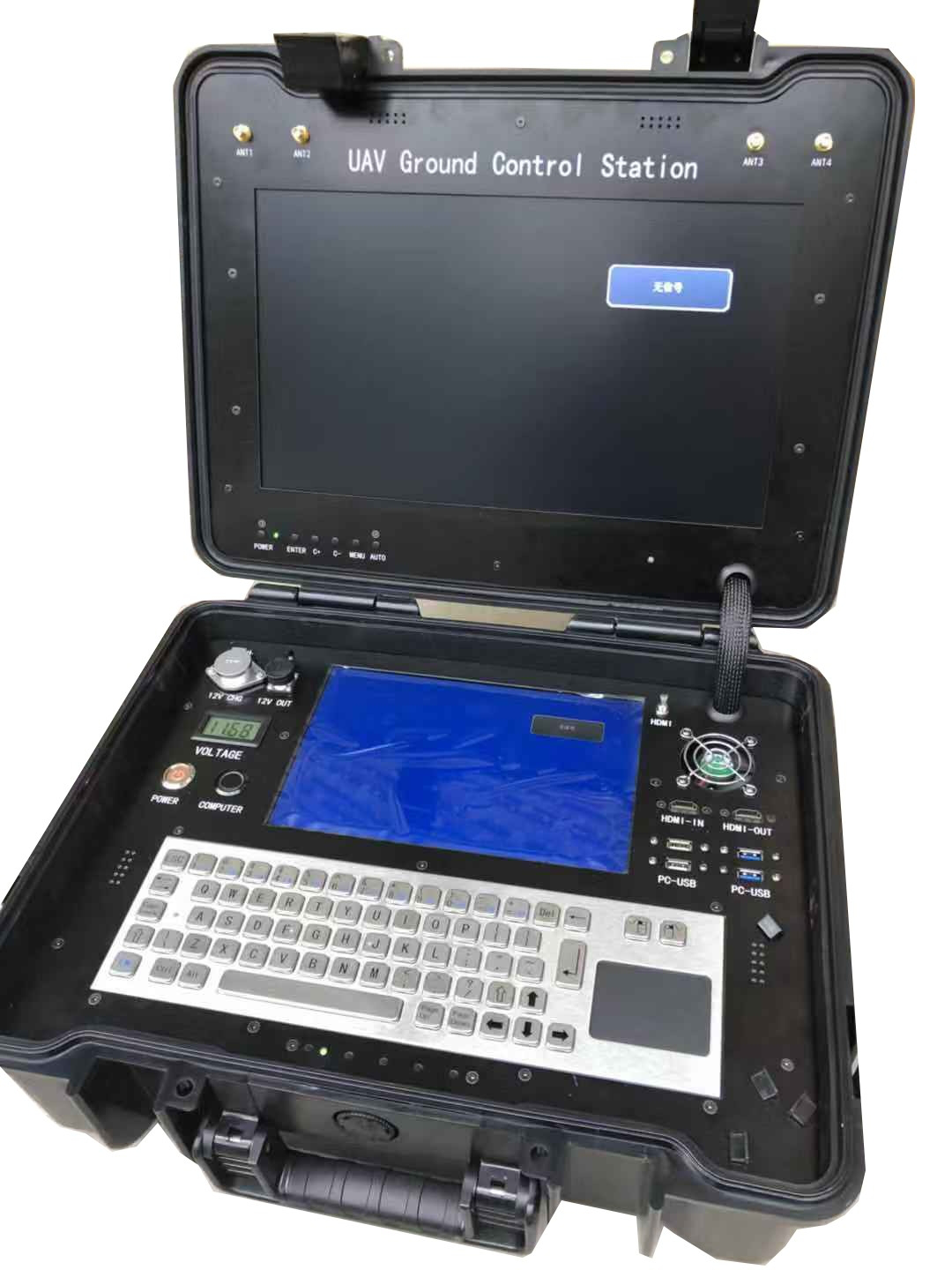

Military ground station
★Battery life: 2-3 hours of continuous work (equipped with dual batteries and car chargers can work around the clock
★Storage expansion: freely expand by inserting a large-capacity SD card or USB.

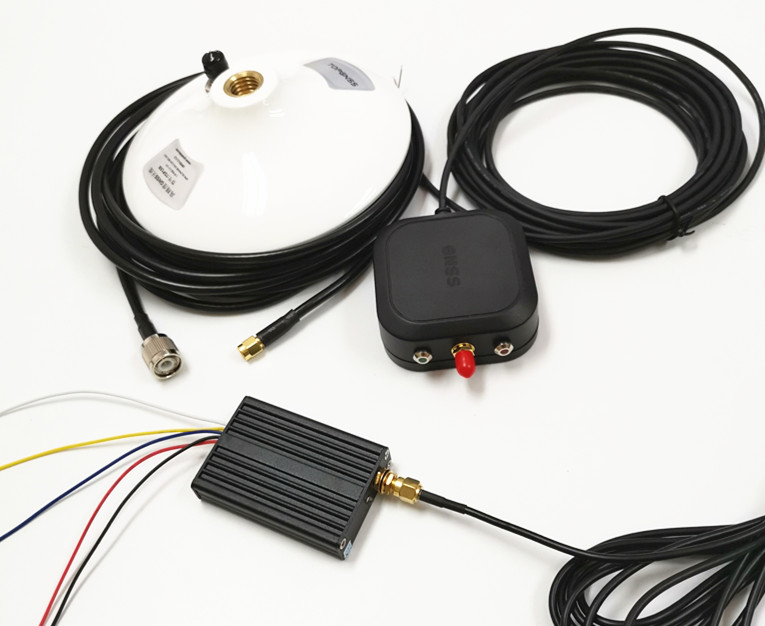

Integrated high-precision board and high-precision antenna integrated design, small size, light weight, only need external power supply, externally matched with the digital transmission module of the digital radio, you can quickly complete RTK high-precision centimeter-level positioning.

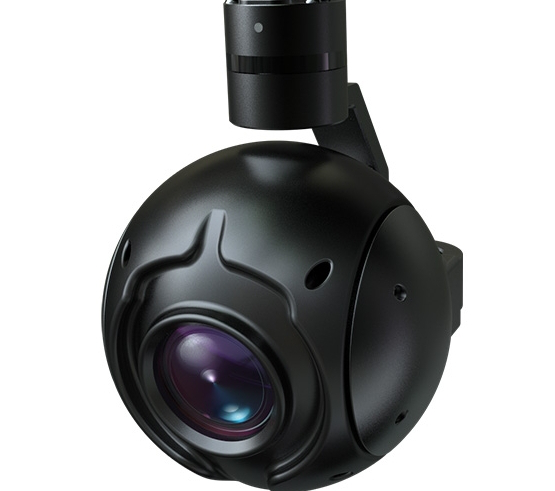

★Integrated design equipped with SONY 30x optical zoom camera, 1080P HD output;
★ Adapt to the harsh working environment.
Audio transmission distance: 5KM (standard version);
Amplifier power: 100W (standard version)
Amplification distance: 65-75 decibels measured from 100 meters away.
Airborne terminal voltage: 12V (optional 3S12V battery directly connected)
The TH30Q optoelectronic pod is precision machined from aviation aluminum alloy and high-strength nylon. It has high strength, good vibration absorption, rain resistance, dust resistance, and corrosion resistance. The sophisticated circuit system can work stably under low temperature conditions of -10°C. , Can adapt to the harsh field working environment.

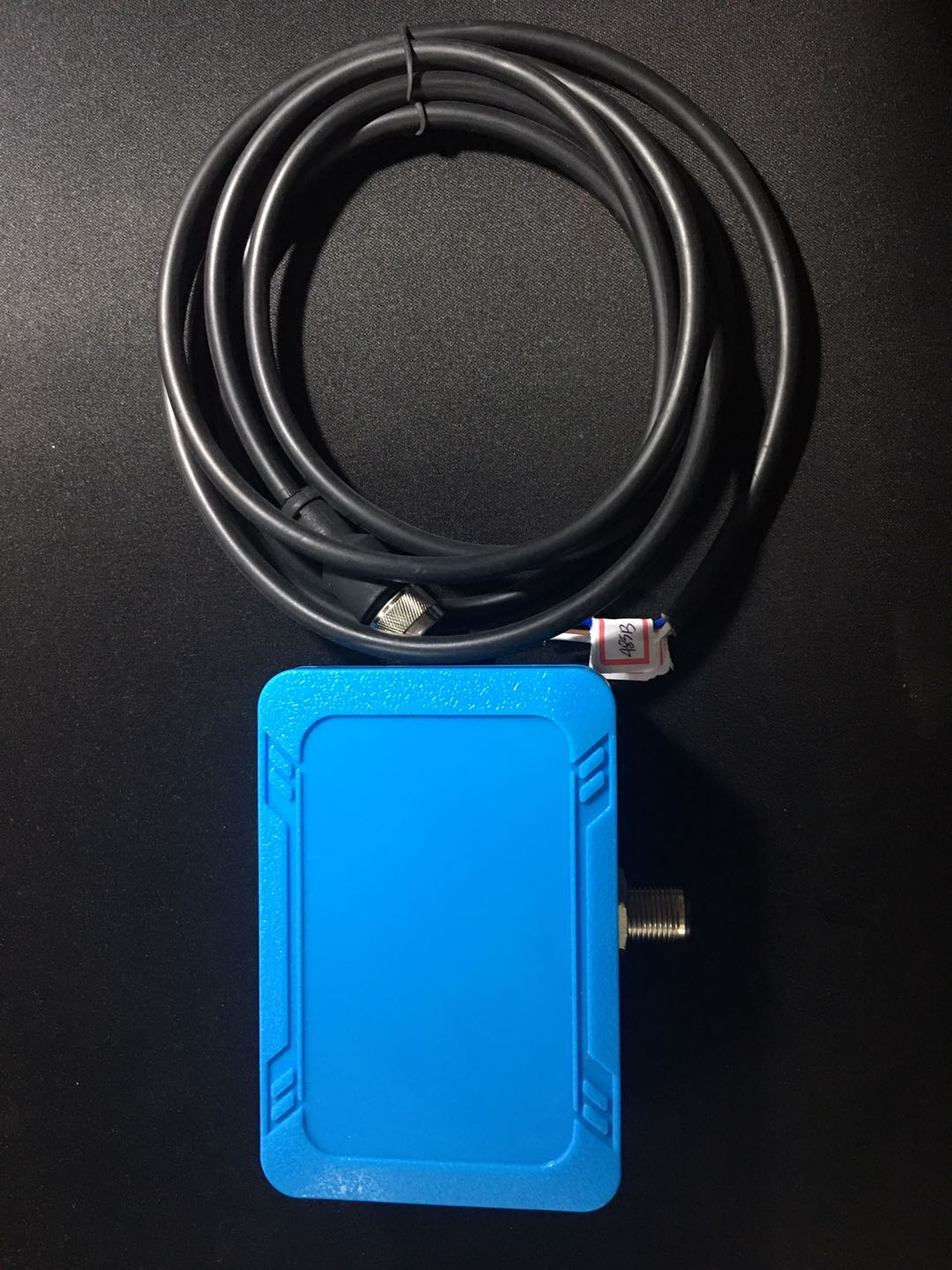

The application on the speed feedback instrument, the speed measurement distance is long, up to 250 meters or more, the speed is displayed in time to remind, the product power consumption is low, and the power consumption is less
