Food Grade Helical Gear Rotary Valve

Stainless steel rotary valve, dedicated to the food industry. And easy clean airlock valve body.
Equipped with helical gear reducer, it is corrosion-resistant, high-temperature resistant and has a long service life.

Quantity:
  • Speed

Stainless Steel 304/316 Easy Clean Rotary Airlock


It can be used in many industries, such as chemical, pharmaceutical, and cosmetic industries. But the main thing is dedicated to the food industry. And easy clean airlock valve body. Equipped with helical gear reducer, it is corrosion-resistant, high-temperature resistant and has a long service life.

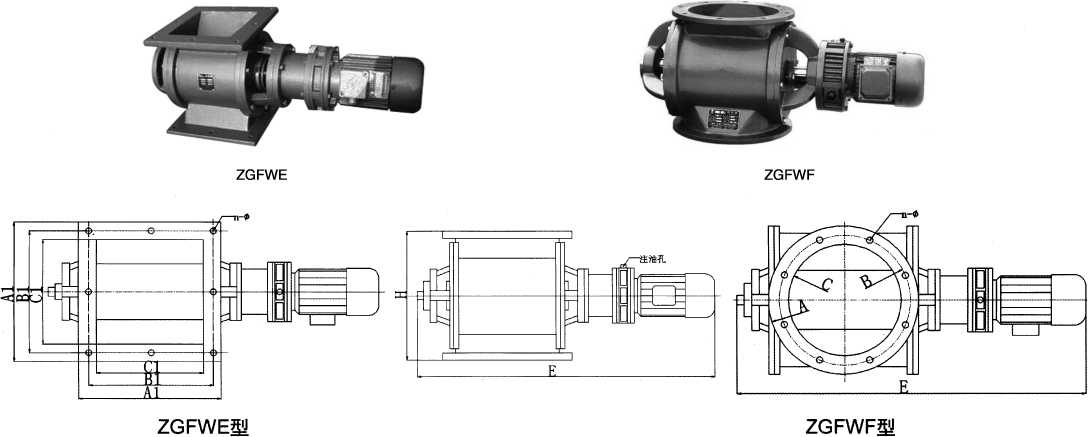

rotary valve drawing

 type

Volume/rotation



Power



Speed

temperature

weight

Installation dimension

(KW)

R/min

(°C)

Kg

ΦA

ΦB

ΦC

A1

B1

C1

H

E

n-Φ (mm)

2type

2L/T

0.75

24

280

75

240

200

150

240x240

200

150x150

240

850

8-Φ11

4type

4L/T

0.75

24

280

105

280

240

180

270x270

230

180x180

280

900

8-Φ11

6type

6L/T

0.75

24

280

110

300

260

200

290x290

250

200x200

300

930

8-Φ11

8type

8L/T

0.75

24

280

125

320

280

220

310x310

270

220x220

320

950

8-Φ11

10type

10L/T

1.1

24

280

135

340

300

240

330x330

290

240x240

340

1000

8-Φ13

12type

12L/T

1.1

24

280

140

360

320

260

350x350

310

260x260

360

1030

8-Φ17

14type

14L/T

1.1

24

280

160

380

340

280

370x370

330

280x280

380

1050

8-Φ17

16type

16L/T

1.1

24

280

180

400

360

300

400x400

350

300x300

400

1080

8-Φ17

18type

18L/R

1.5

24

280

195

420

380

320

420x420

370

320x320

420

1100

8-Φ17

20type

20L/T

1.5

24

280

210

440

400

340

440x440

390

340x340

440

1150

8-Φ17

26type

26L/T

2.2

24

280

310

500

460

400

510x510

450

400x400

560

1300

12-Φ17

30type

30L/T

3

24

280

350

560

500

440

550x550

495

440x440

550

1350

12-Φ17

40type

40L/T

3

24

280

450

620

558

500

620x620

558

500x500

620

1500

12-Φ17

50type

50L/T

3

24

280

500

650

600

540

650x650

600

540x540

650

1600

12-Φ17

Rotary valve body processing


1. Open the mold, decide the product mold and pour the valve body according to the design drawings and R&D process

2. out of the rough, the first class foundry has been fixed for more than 15 years of cooperation, and the rough parts are produced according to the actual amount

3.boring machine processing, after roughing through rough lathe, precision boring valve body cavity and upper and lower surface flanges by precision CNC machining center

4. Polishing and polishing, professional grinding personnel polish the valve body and various accessories to the mirror surface

5. Precision welding, for all kinds of non-standard parts, a professional welder team accurately welds according to the design drawings

6. Finishing machine, various machining centers and outsourcing finish the surface of the valve body within 10 wires

7. Locksmiths, various CNC drilling machines and tapping machines make precise holes in the valve body and accessories to ensure accurate dimensions

8. Fine drilling, the company purchases a German imported tapping machine to drill and tap the connecting parts of the product to ensure the accuracy of the size

9. Assembly, quick and accurate installation by assembly workers who have worked for more than ten years

10.Commissioning, perform various data debugging on the overall operating parameters of the valve before leaving the factory, and after the developed quality certificate under the QC department is approved to leave the factory to ensure that the customer's needs are met and qualified shipments are given

Product details

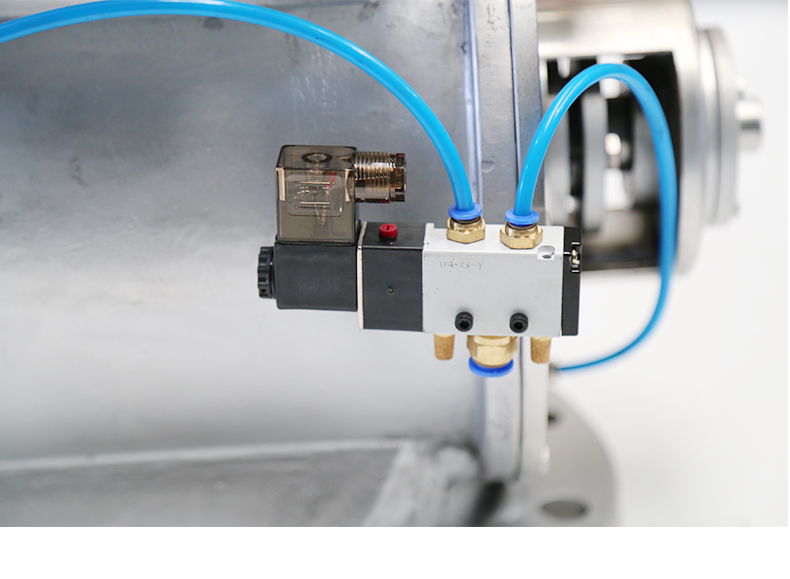

Air lock device part

关风机描述_11

Reducer and motor part

reducer and motor part

Body flange

body flange

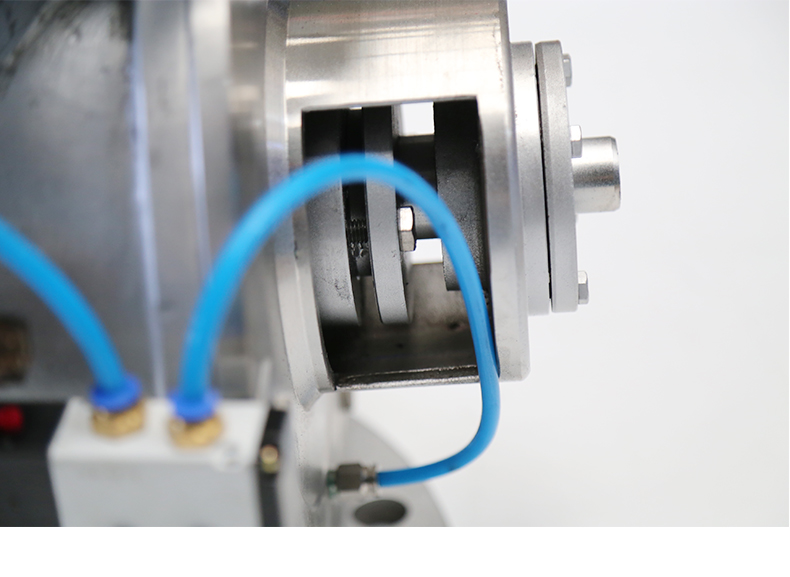

Front flange
