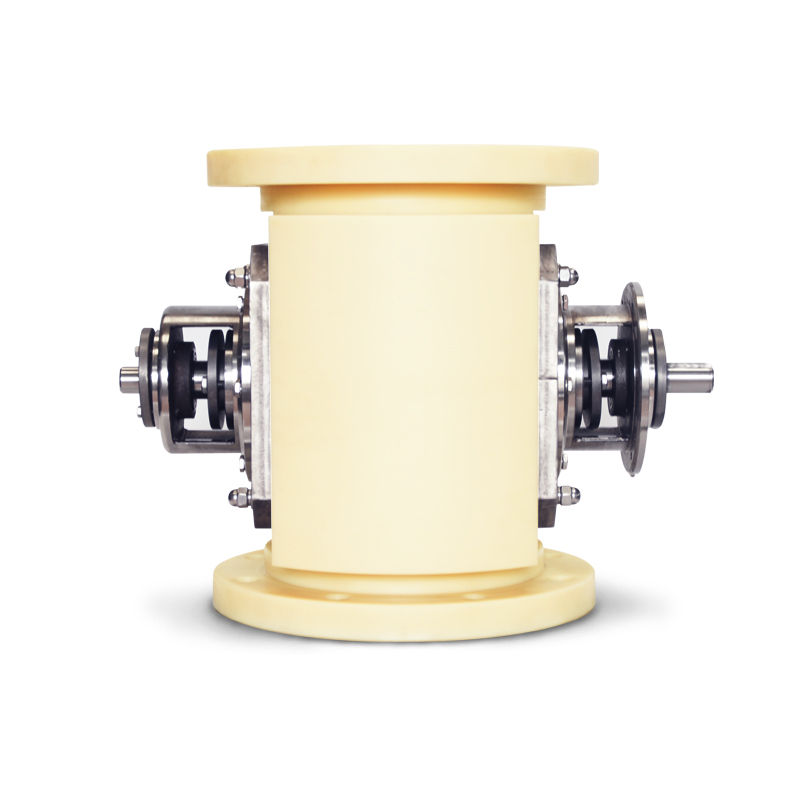

A nylon rotary valve is a type of valve made from nylon material that is used in certain applications, such as in the manufacturing of lithium batteries. The valve is designed to rotate, allowing for the precise control of the flow of materials or fluids through a system.
In the context of lithium batteries, nylon rotary valves can be used in the production process to control the flow of electrolyte, a key component in the battery that helps to facilitate the flow of electrons between the battery's electrodes. By using a rotary valve made from nylon, manufacturers can ensure that the electrolyte is delivered in precise amounts and at the correct rate, which can help to improve the overall quality and performance of the battery.
Nylon rotary valves offer several benefits for lithium battery production. These valves are made of nylon material, which provides excellent chemical resistance to the harsh chemicals used in battery production. Additionally, nylon is lightweight and has low friction properties, allowing for smooth and efficient operation.
One of the key advantages of nylon rotary valves is their ability to handle high temperatures. In lithium battery production, high temperatures are often required during the manufacturing process. Nylon rotary valves can withstand these high temperatures without degrading, ensuring consistent performance and reliability.
Another benefit of nylon rotary valves is their ability to resist wear and tear. The nylon material is highly durable and can withstand the abrasive nature of the battery production process, reducing the need for frequent maintenance and replacement.
Nylon rotary valves are also highly customizable, allowing them to be tailored to the specific needs of the lithium battery production process. They can be designed to accommodate different flow rates, pressure requirements, and temperature ranges, ensuring optimal performance and efficiency.
Overall, the use of nylon rotary valves in lithium battery production can improve the reliability and efficiency of the manufacturing process, leading to higher quality batteries and increased productivity.

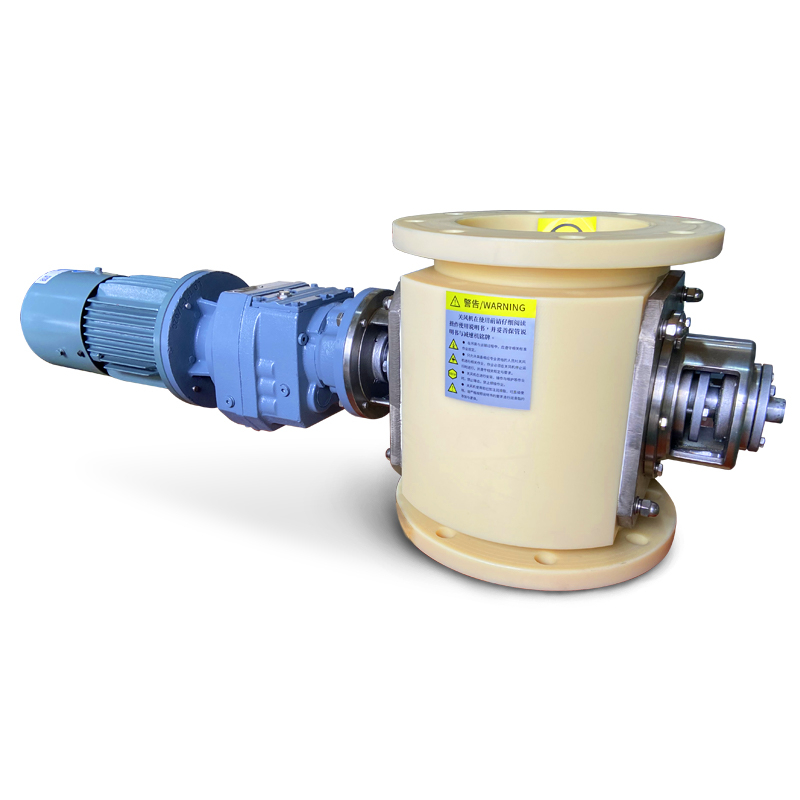

Material; Nylon (casing, impeller rotor, side cover) construction
Reducer motor: cycloid reducer, gear reducer,
Motor: ABB, Siemens, wannanan and other brands
Speed: 24rpm, 33rpm or customized
blade rotors: 6-12pcs
Parameters Table
type | Volume/rotation |
Power
| Speed | temperature | weight | Installation dimension | ||||||||
(KW) | R/min | (°C) | Kg | ΦA | ΦB | ΦC | A1 | B1 | C1 | H | E | n-Φ (mm) | ||
2type | 2L/T | 0.75 | 24 | 280 | 75 | 240 | 200 | 150 | 240x240 | 200 | 150x150 | 240 | 850 | 8-Φ11 |
4type | 4L/T | 0.75 | 24 | 280 | 105 | 280 | 240 | 180 | 270x270 | 230 | 180x180 | 280 | 900 | 8-Φ11 |
6type | 6L/T | 0.75 | 24 | 280 | 110 | 300 | 260 | 200 | 290x290 | 250 | 200x200 | 300 | 930 | 8-Φ11 |
8type | 8L/T | 0.75 | 24 | 280 | 125 | 320 | 280 | 220 | 310x310 | 270 | 220x220 | 320 | 950 | 8-Φ11 |
10type | 10L/T | 1.1 | 24 | 280 | 135 | 340 | 300 | 240 | 330x330 | 290 | 240x240 | 340 | 1000 | 8-Φ13 |
12type | 12L/T | 1.1 | 24 | 280 | 140 | 360 | 320 | 260 | 350x350 | 310 | 260x260 | 360 | 1030 | 8-Φ17 |
14type | 14L/T | 1.1 | 24 | 280 | 160 | 380 | 340 | 280 | 370x370 | 330 | 280x280 | 380 | 1050 | 8-Φ17 |
16type | 16L/T | 1.1 | 24 | 280 | 180 | 400 | 360 | 300 | 400x400 | 350 | 300x300 | 400 | 1080 | 8-Φ17 |
18type | 18L/R | 1.5 | 24 | 280 | 195 | 420 | 380 | 320 | 420x420 | 370 | 320x320 | 420 | 1100 | 8-Φ17 |
20type | 20L/T | 1.5 | 24 | 280 | 210 | 440 | 400 | 340 | 440x440 | 390 | 340x340 | 440 | 1150 | 8-Φ17 |
26type | 26L/T | 2.2 | 24 | 280 | 310 | 500 | 460 | 400 | 510x510 | 450 | 400x400 | 560 | 1300 | 12-Φ17 |
30type | 30L/T | 3 | 24 | 280 | 350 | 560 | 500 | 440 | 550x550 | 495 | 440x440 | 550 | 1350 | 12-Φ17 |
40type | 40L/T | 3 | 24 | 280 | 450 | 620 | 558 | 500 | 620x620 | 558 | 500x500 | 620 | 1500 | 12-Φ17 |
50type | 50L/T | 3 | 24 | 280 | 500 | 650 | 600 | 540 | 650x650 | 600 | 540x540 | 650 | 1600 | 12-Φ17 |
Advantages of nylon rotary valve in new energy lithium battery production line
Nylon rotary valves have several advantages in new energy lithium battery production lines:
High durability: Nylon rotary valves are made of high-quality materials that are designed to withstand the abrasive and corrosive nature of the lithium battery production process. They can operate continuously for long periods without requiring maintenance or replacement.
Precision control: Nylon rotary valves provide precise control of the flow of materials throughout the production process, ensuring that each stage of the process is optimized for efficiency and quality.
Low friction: The smooth surface of nylon rotary valves ensures that there is minimal friction between the valve and the materials being transported, reducing wear and tear on the valve and increasing the lifespan of the equipment.
Resistance to chemicals: Nylon rotary valves are resistant to most chemicals and solvents used in the production of lithium batteries, making them ideal for use in harsh environments.
Easy to clean: Nylon rotary valves can be easily disassembled and cleaned, reducing the risk of contamination and ensuring that the production process remains hygienic and safe.
Overall, the use of nylon rotary valves in new energy lithium battery production lines can help to increase efficiency, reduce downtime, and improve the quality of the final product.
