Multifunctional drones
Accurate filling according to the set amount..
The world's first panoramic survey point unmanned aircraft can quickly survey the boundary of the plot without scanning the plot as a whole, saving geographic information processing time.

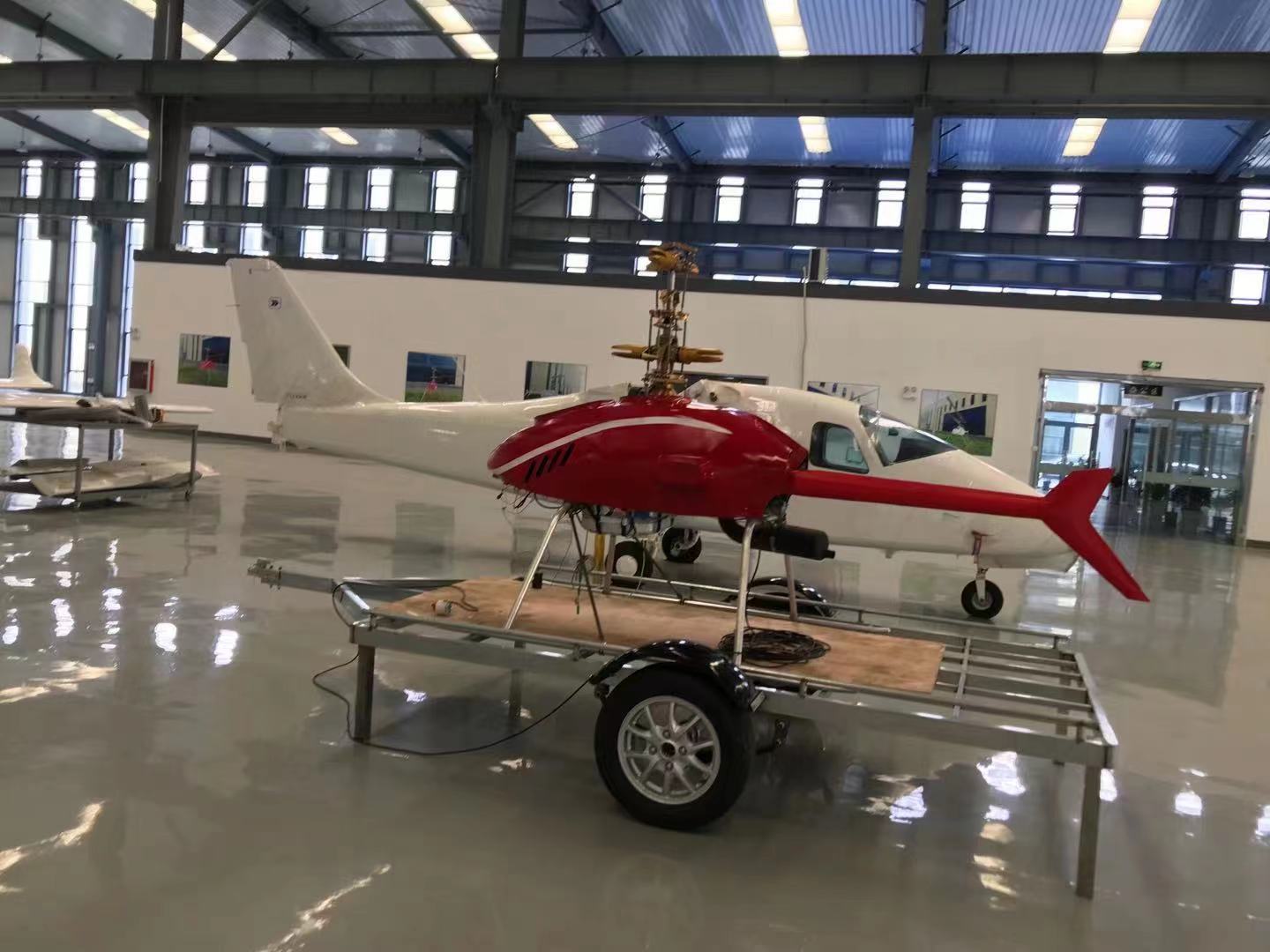

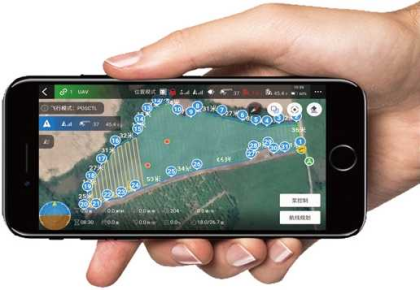

The 26L Large-load Single-rotor Plant Protection Drone helicopter, controlled by a mobile phone ground station, takes off and landed in one set, and operates autonomously according to the set flight altitude, speed, spray pattern and route.
The flight and spraying parameters can be preset, and the loading and automatic planning of arbitrary polygonal plots are supported.
Automatic detection of power and drug amount, autonomous return to home, unique breakpoint continuous spray technology
Autonomous ground flight
Through the flight control's ground-like radar and differential GPS, the unmanned aircraft can realize automatic mountain slope spraying operation to ensure the flight safety of the drone and the spraying effect of the operation.
And it can avoid obstacles outside the range of climbing height.
Autonomous ground flight
DF5A has night flight mode, easy night operation.
One-time control of multiple plant protection drones has doubled the per capita operating efficiency.
In order to adapt to the characteristics of low-frequency and high-density agricultural plant protection, the design of OneKey DF5A is 8~10 meters.
It can realize the operation efficiency of 4~5 acres per minute and 240~300 acres per hour
Large area for short-time work and high profit
In the process of plant protection operations in Tengxing, the amount of liquid medicine can be accurately configured through the intelligent medicine filling machine, which saves medicine, water and money.
One-key Smart Agriculture DF5A uses a pluggable medicine box, which can quickly replace the medicine box, which saves time and effort.
Name | Electric single-rotor agricultural unmanned aircraft | Sprinkler | Type | Electric centrifugal | ||
Model | 3WWDZ-26B | Quantity（PCS） | 2 | |||
Flight control system | Autonomous control (RTK version) | Length of spray rod (mm) | 1427 | |||
Total Weight(Kg） | 30 | Medicine tank | Material | PE | ||
Max.take-off weight （Kg） | 62 | Rated Capacity （L） | 26 | |||
Application efficiency (mu/min) | 5-6 | Supporting power | Main motor | Rated power (W) | 9000 | |
Dimensions (mm) | 2170x785x710 (LxWxH) | Tail motor | Rated power (W) | 1600 | ||
Battery | Voltage（V） | 51.8 | Liquid pump | Type | Gear pump | |
Capacity(mAh) | 22000(14s) | Displacement (L/min) | 0-6 | |||
Rotor | Material | Aviation aluminum + carbon fiber material | Type | Diaphragm pump (optional） | ||
Number of main rotors | 1 | Displacement (L/min) | 0-8 | |||
Diameter (mm) | 2642 | Spray width (mm) | 8-10 | |||
