10L Agricultural Uav Crop Sprayer Drone /drone Sprayer Agriculture

Save pesticides
High safety factor
Keep people away from pesticides
with flight parameter record

Quantity:
  • Speed-10

10L Agricultural Uav Crop Sprayer Drone /drone Sprayer Agriculture

Stable and Reliable

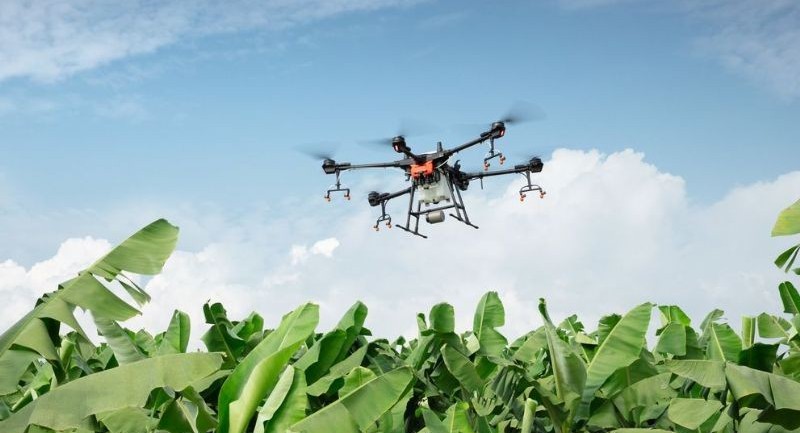

白底4_WPS图片

Open a new era of smart agriculture

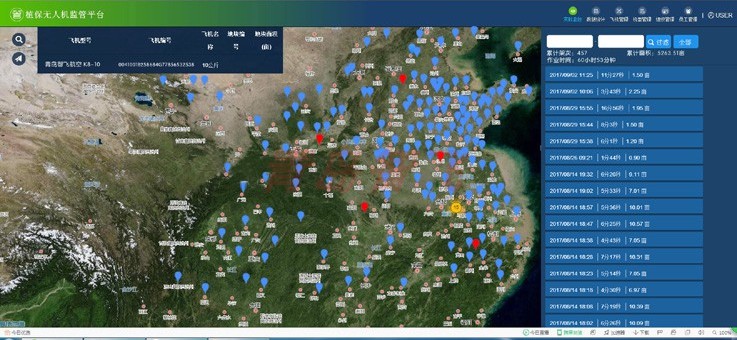

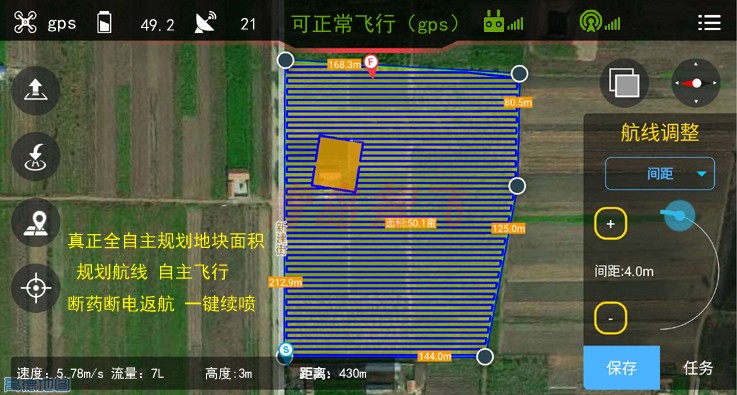

Agricultural plant protection aircraft integrates DJI's new technology. The new A3 flight control and radar sensing system ensure flight reliability. The water pump spraying system and flow sensor make plant protection operations more compatible with the new MG intelligent planning operation system and DJI agricultural management platform. Planning, real-time flight management and work statistics.

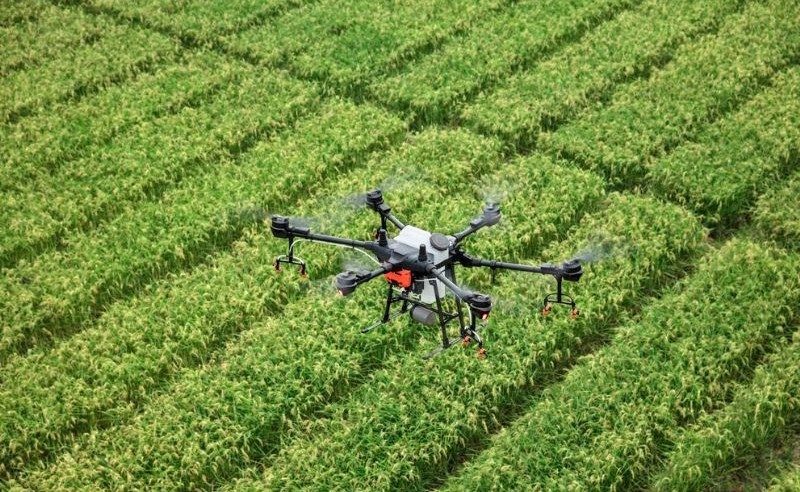

白底5_WPS图片

This is a high-performance drone, and also provides you with a complete set of intelligent and convenient agricultural plant protection solutions

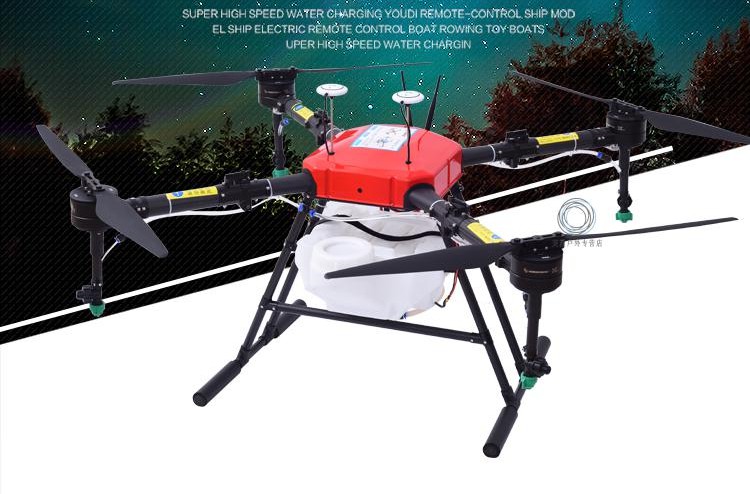

15_WPS图片

Super Size

Stable Flight

Sealed Body

Take Off

One Key Return

Folding Arm

Dustproof and Waterproof

Anti-collision and Anti-fall

Powerful Battery

Good Heat Dissipation

13

14

Technical Parameter

1612170405(1)

Model: SPEED-10 Color: Red and White (four axles) Wheelbase (mm): 1200

Specification (mm): folded 770*650*580mm unfolded 1200*1200*580 (no pulp)

Arm pipe diameter: 40mm

Weight: 5.5KG (including motor base)

Load: 10L

Flying speed: 0-10m

Spray width: 3-5m

Takeoff weight: >25KG

Power system: Hobby wing X8

Spraying system: pressure spraying system, pressure spraying head, centrifugal spraying head or adding four folding spraying rods

Maximum water pump pressure: 1MPA

Spraying flow: 0.8-2.0L/MIN adjustable (with pressure cone nozzle)

Flight time: 15-20min

Operation efficiency: 10-15 acres / sorties

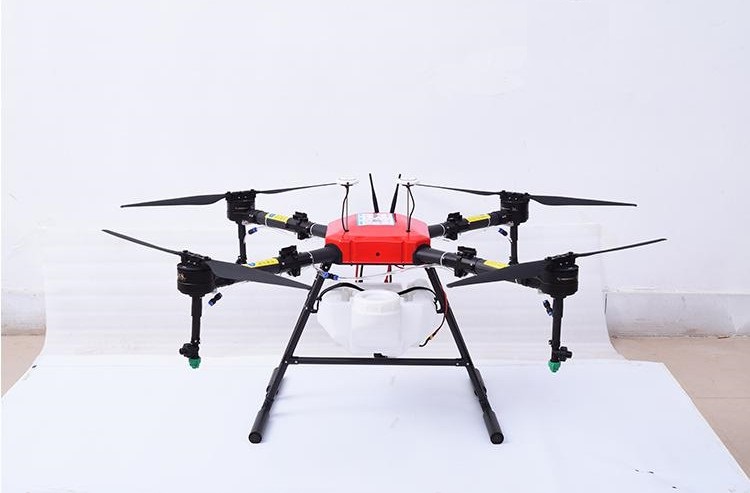

Sealed Body, Waterproof And Dustproof

25_WPS图片

Save pesticides

High safety factor

Keep people away from pesticides

Powerful Flight Control System, Steady Flight

19

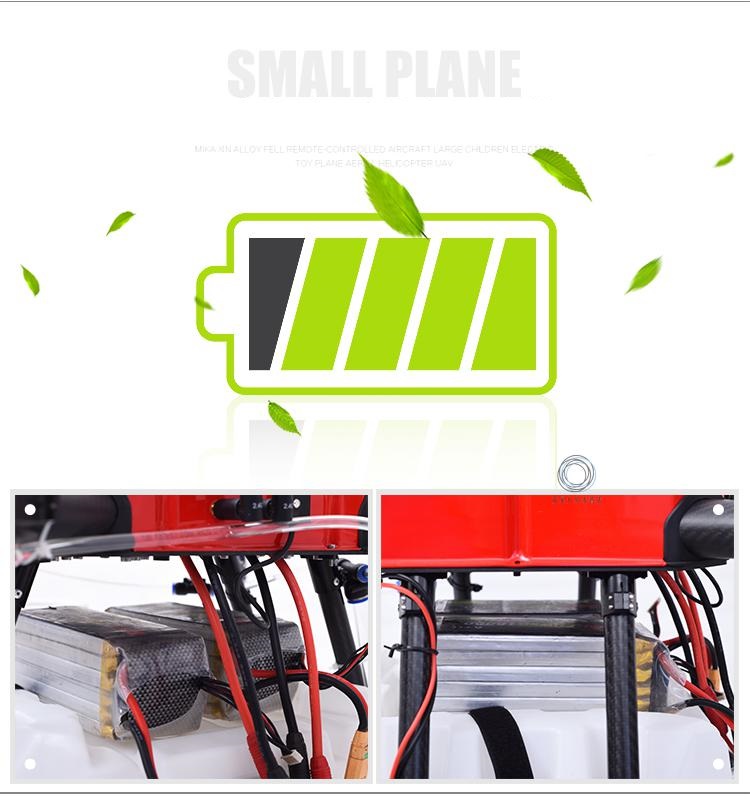

Powerful Battery,High Energy and Long Battery Life

20

Foldable Wings, Save Space

21

22

23

24

Agricultural drone (1)

Save 30%-50% of pesticides 400-500 mu/day 10L/mu Operator

Keep away from pesticides, high safety factor, high efficiency,

Effect on sudden crop pests

Damage 10-15 yuan/mu/time
